Amateur radio station CRT SS 7900
V TURBO

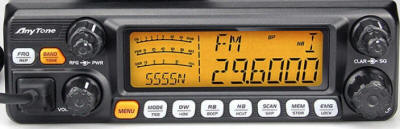

This looks a lot like the
AnyTone AT-5555N.
Multi Band - AM / FM / USB / LSB
/ CW / PA
- CB, SSB, AM, FM, LSB, USB, SSB
- 28-29.7Mhz,
- ASQ,
- RF Gain,
- Roger Beep,
- 12V,
- CTCSS,
- DCS,
- programmable




|
|
SOLD OUT
|

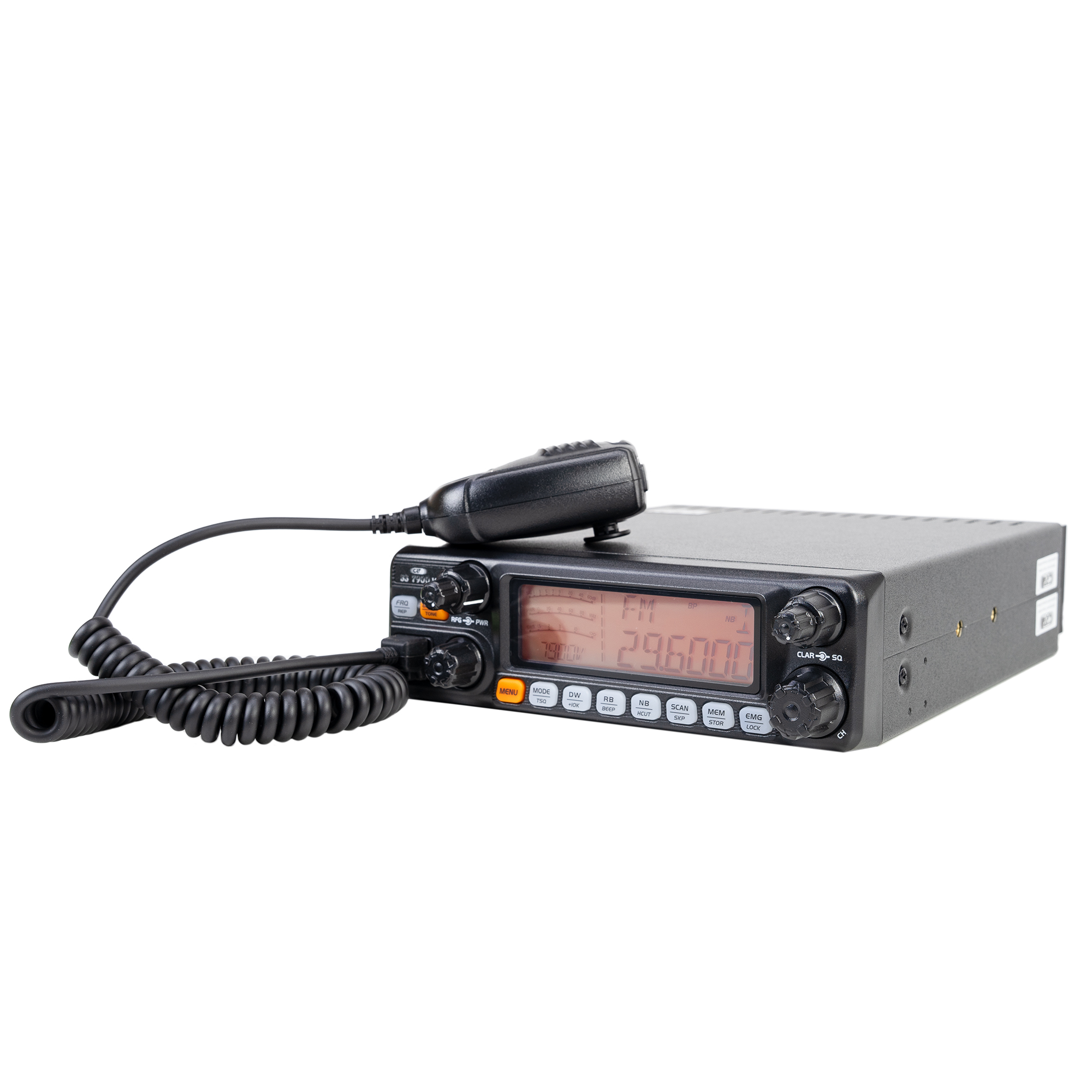

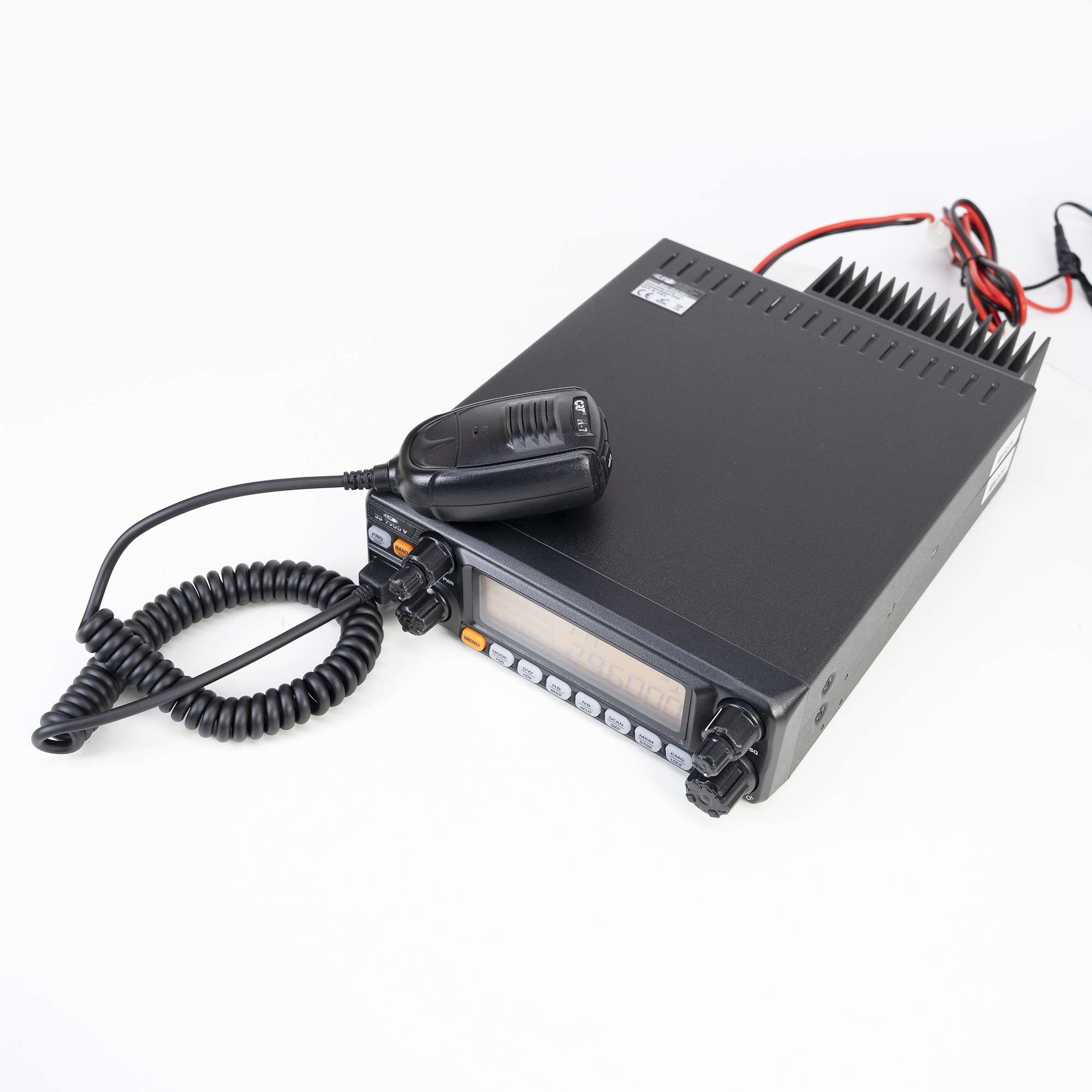

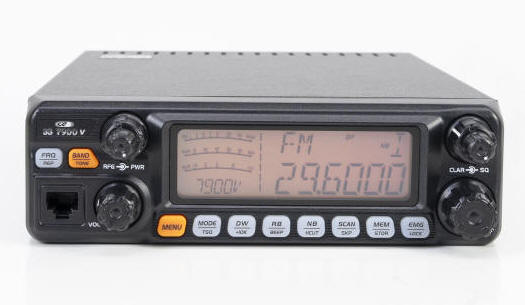

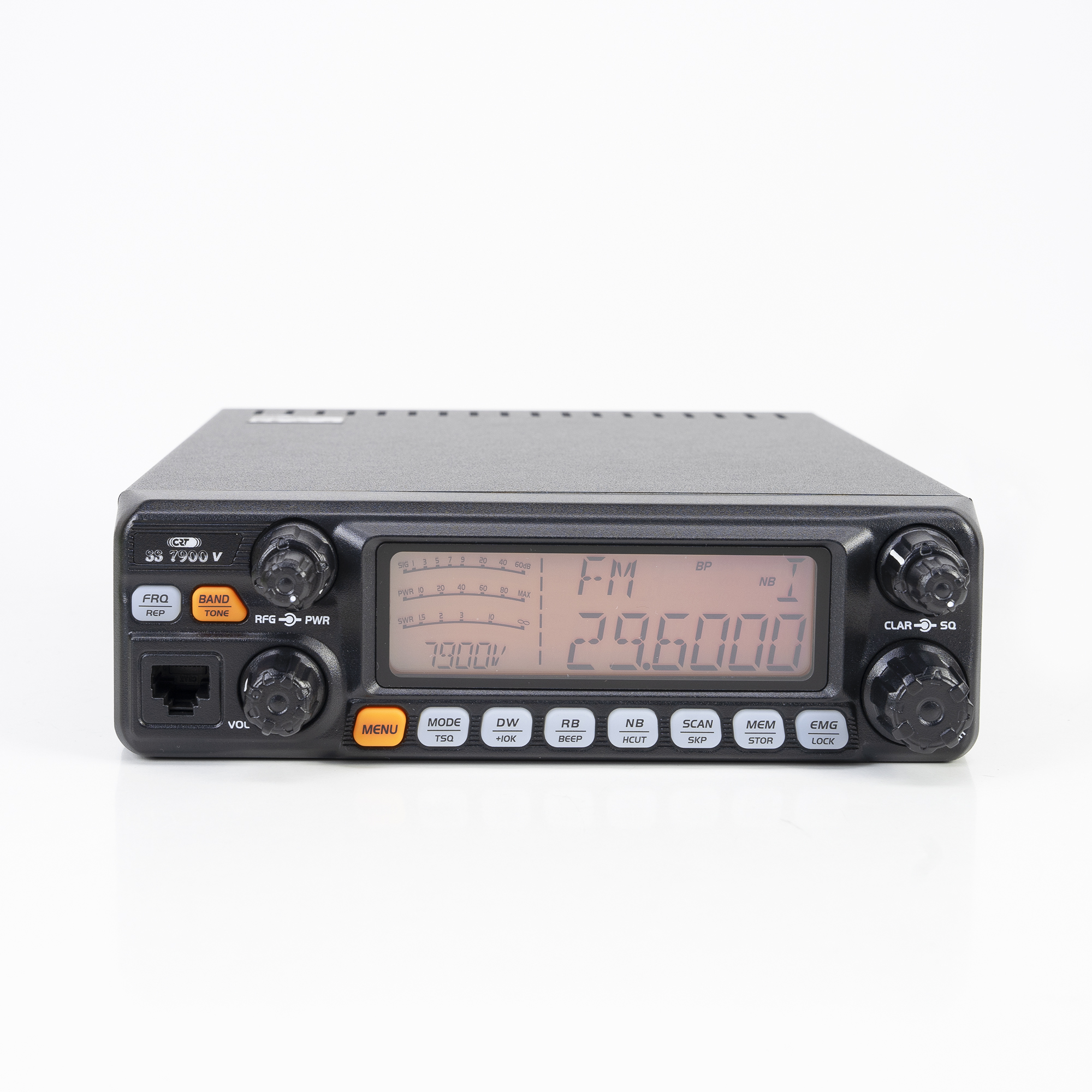

CRT SS-7900V Turbo
All Mode 10 Meter transceiver |
$279.50 |
|
|
Download
Software
|
Optional
Accessories |
|
|
Tune-up
and frequency conversion.
(Tune-up,
Alignment and
expanded frequency) |
$49 |
|
|
Install
an EXTERNAL PTT keying port.
We use
an
RCA jack for a
TX output
PORT to your external device.
Every time you key it provides a connection between the +/-
of the RCA connector.
1) Output RCA completely
isolated from the radio. Both +/- connect to a relay that
isolates it from the radios circuits.
2) Optional BYPASS switch in case your external device does not
have a standby (turns port off (stays open))
4) Heavy duty relay can handle any keying circuit voltage, even the
SB-220's - 120VDC circuit. |
$49
/
$59
/
$69 |
|
|
Change
factory power cord
to a 10 Gauge
Power Cord (14 foot) and modify the DC Jack for high
amperage 2 Pin Quick connector.
    |
$59 |
|
|
Install a
Record/Playback Module 120 seconds
(wired inside the radio with a
switch on the side to record 120 seconds and to play it back
over the air) |
$77 |
|
|
Install
a
Noise toy
(wired inside the radio with
a switch or pushbutton to trigger any 30 second sound byte
you want) |
$65 |
|
|
Install
a
Noise toy as a background theme music
(wired inside the radio with
a switch to play any background music at very low volume so
you can talk over it.) |
$65 |
|
|
 Programming
Cable
For Software programming via computer. We don't know
anything about programming these units and we can provide no
assistance with it. |
$18 |
|
|
Add
a
Small External Speaker
(plugs into back of the
radio for improved sound) |
$12 |
|
|
Add a
Large External Speaker
(plugs into back of the radio
for improved sound) |
$25 |
Tuned up values on these watt meters
|
Dosy |
Bird RMS |
*Bird 43P |
|
AM |
1~16w |
1~16w |
1~16w |
|
FM |
1~40w |
1~40w |
1~40w |
|
SSB |
11~43w |
9~39w |
18~75w |
| PEAK
AM |
6~46w |
2~20w |
15~82w |
* The most informative meter and the one we use.
4/5/24
|
Tuned up values on these watt meters
AFTER 10G
Power Wire Mod
|
Dosy |
Bird RMS |
*Bird 43P |
|
AM |
1~19w |
1~19w |
1~19w |
|
FM |
1~40w |
1~40w |
1~40w |
|
SSB |
6~43w |
6~43w |
20~84w |
| PEAK
AM |
6~52w |
2~21w |
20~98w |
* The most informative meter and the one we use.
4/5/24
|
|
General characteristics |
| Model |
SS-7900V |
| Broadband type |
AM / FM / LSB /
USB |
| Frequency |
228,000-29,700MHz (and more) |
|
CTCSS / DCS (coder/decoder) |
38 CTCSS / 104 DCS |

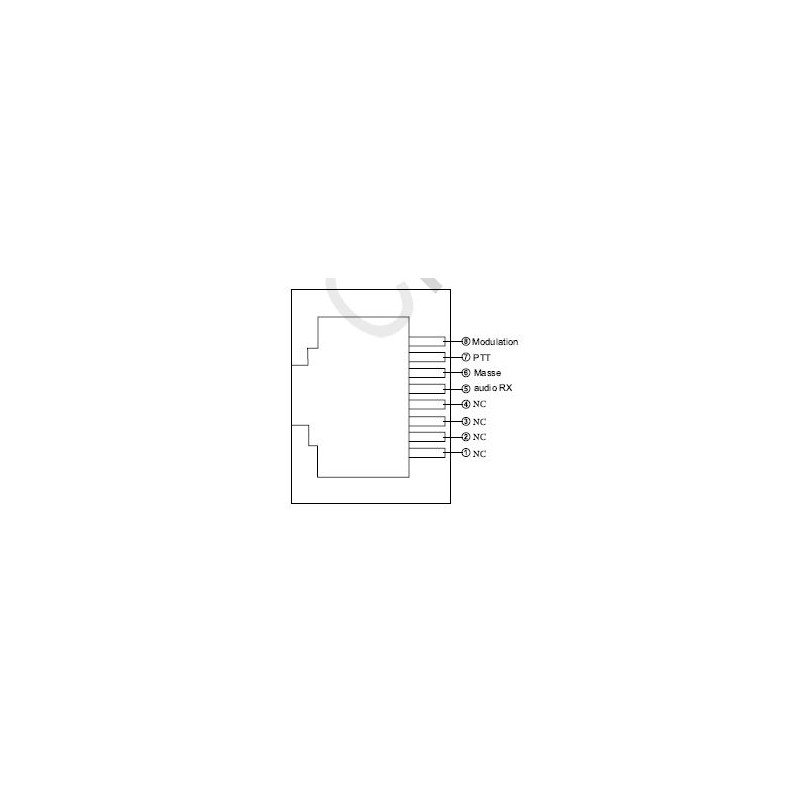

| Microphone type
(pins) |
RJ45 |
| Emission power |
30W AM / 50W FM / 60W SSB |
|
Power source |
13.8 VDC + / -15% |
| Current absorbed |
|
|
Dimensions (W x H x H ) |
200 X 280 X 60
mm / 1.5 kg
7.8" x 11 x 2.4 Inches |
|
Frequency control |
PLL synthesized |
|
|
|
|
